Plotter de Pluma iDraw H SE A3 Preensamblado para Arte Generativo, Codificación Creativa y Dibujo de Precisión

US

€862,95 EUR

Plotter de Pluma iDraw H SE A3 Preensamblado para Arte Generativo, Codificación Creativa y Dibujo de Precisión

Name: Plotter de Pluma iDraw H SE A3 Preensamblado para Arte Generativo, Codificación Creativa y Dibujo de Precisión
Brand: UUNA TEK
SKU: HSEA3IDWUS
Price: 862.95 GBP
Availability: InStock

€862,95 EUR

El envío se calcula al finalizar la compra.

Enchufe US UK AU EU Otros

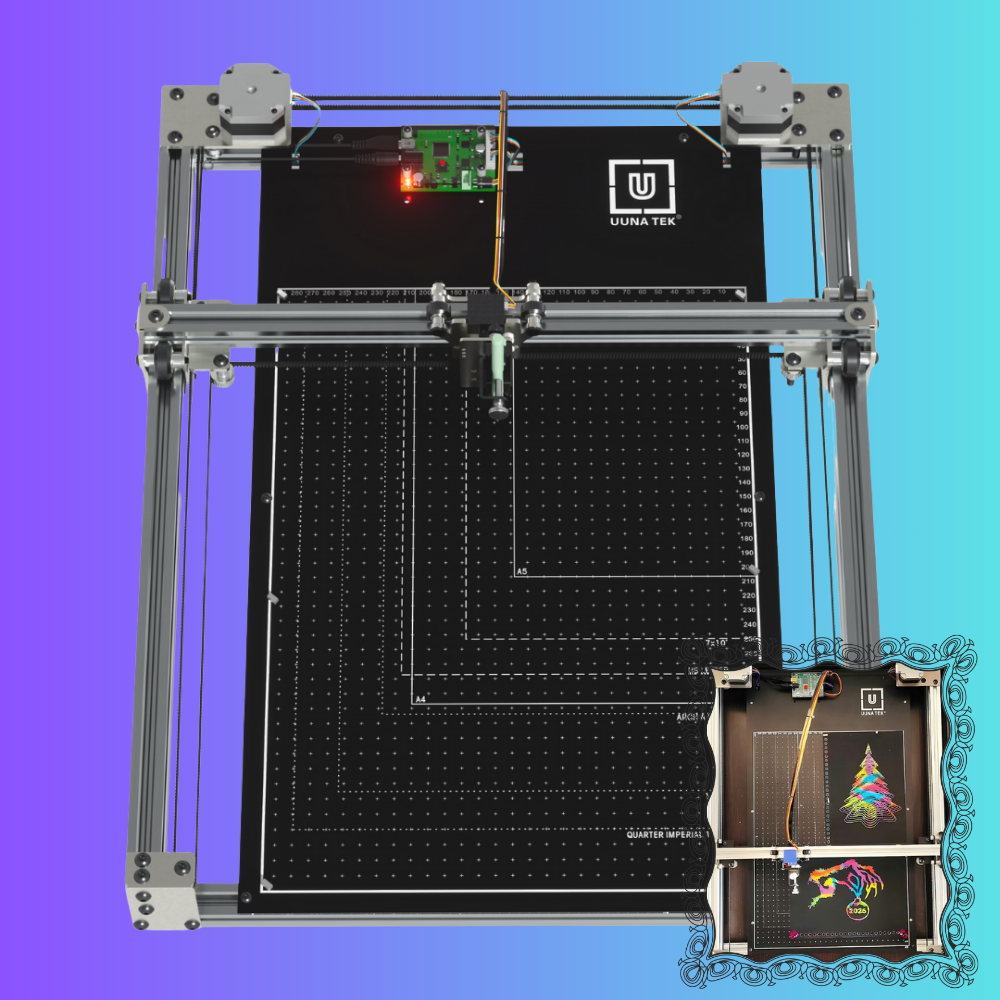

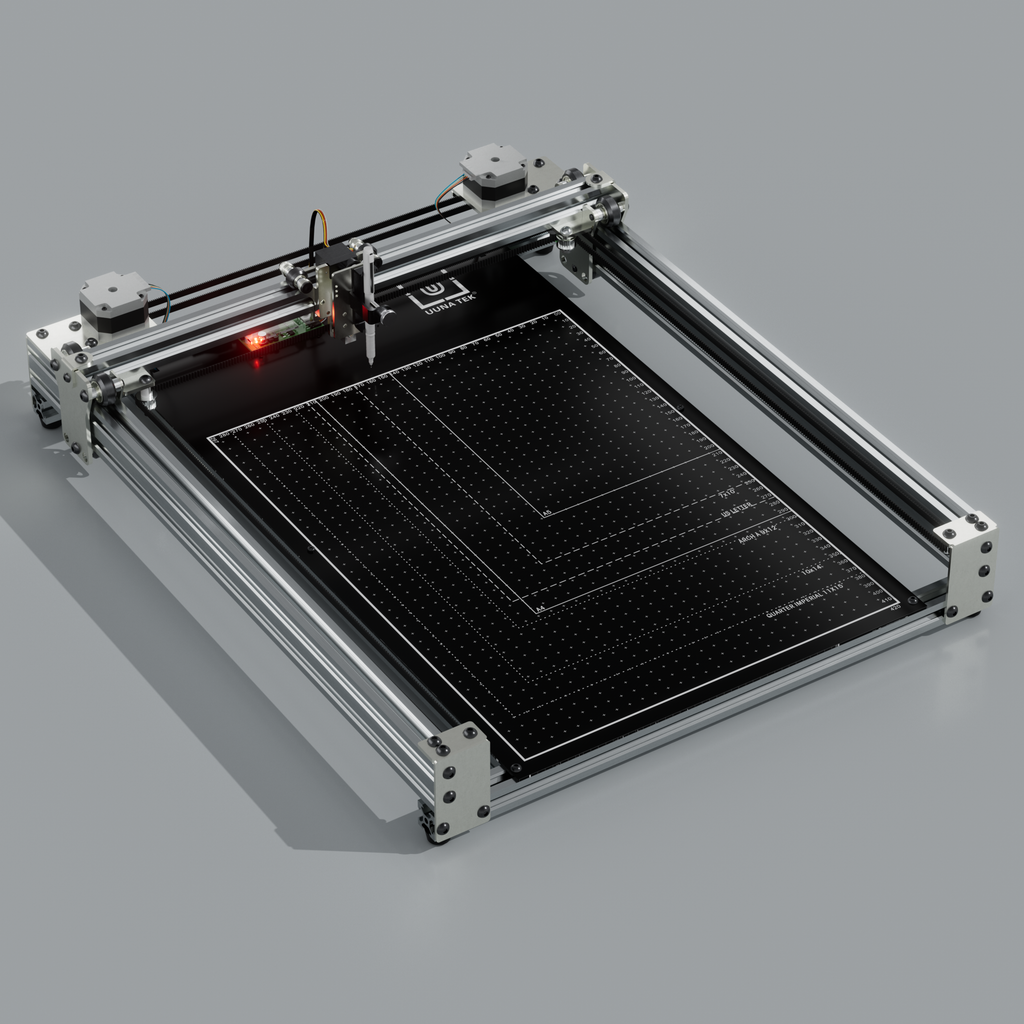

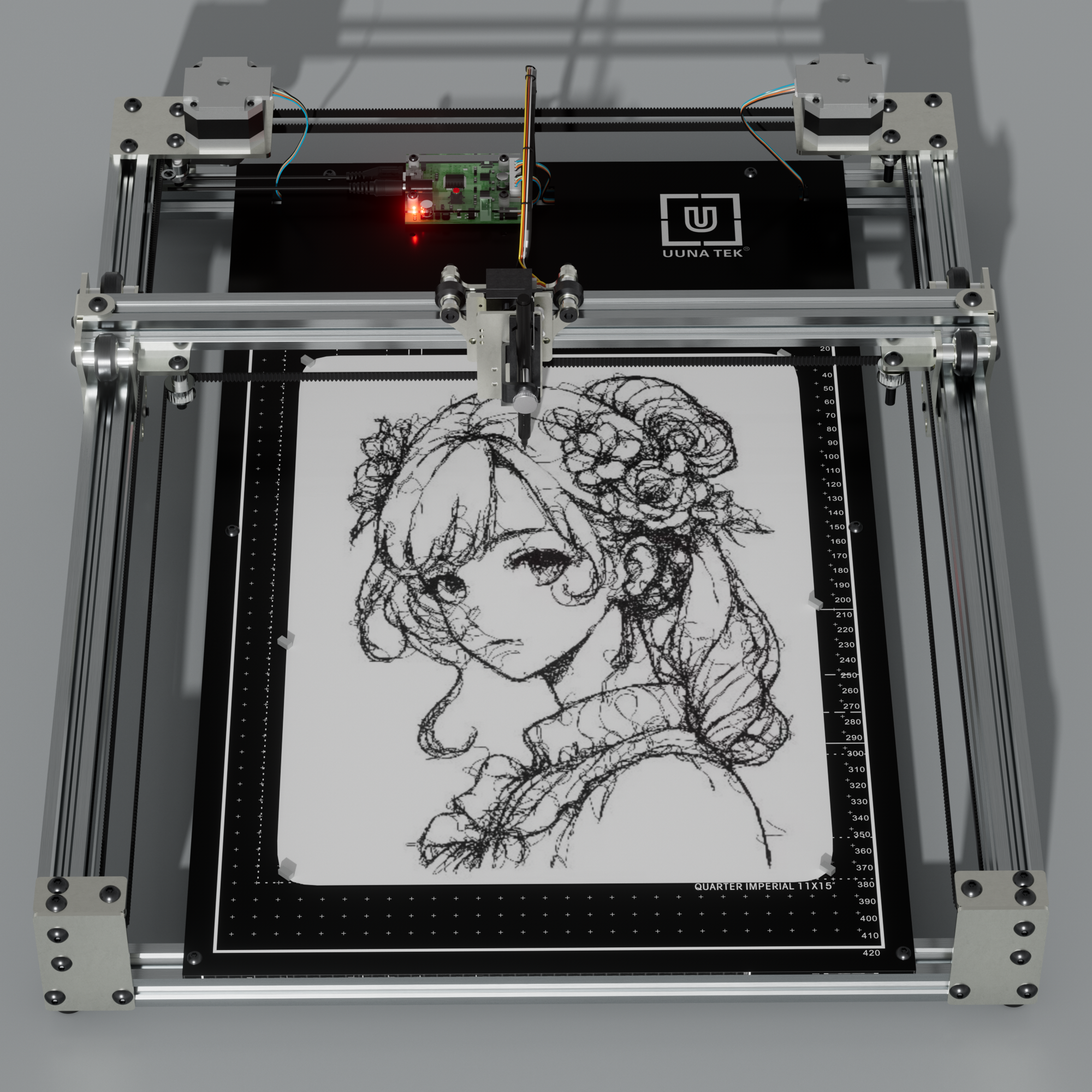

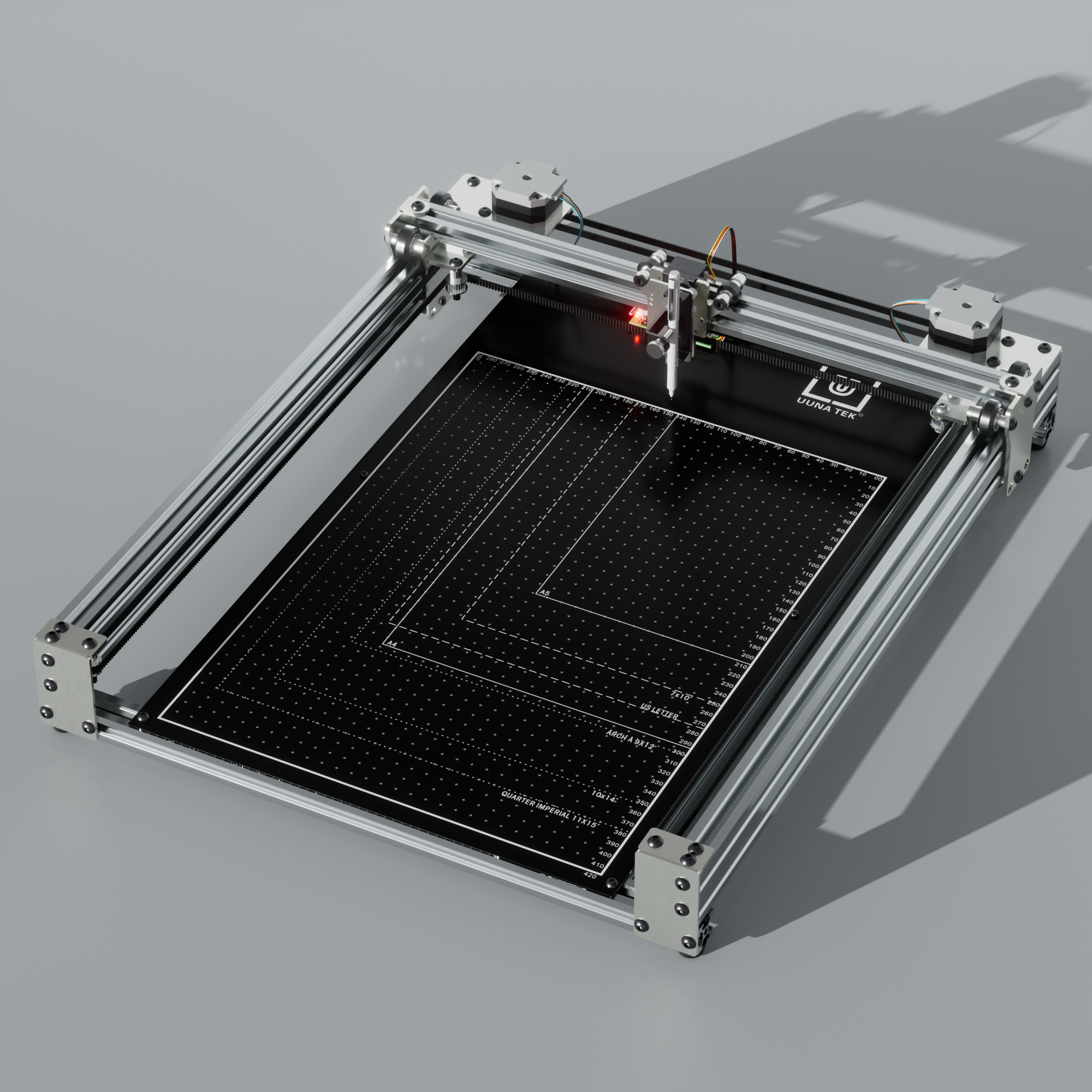

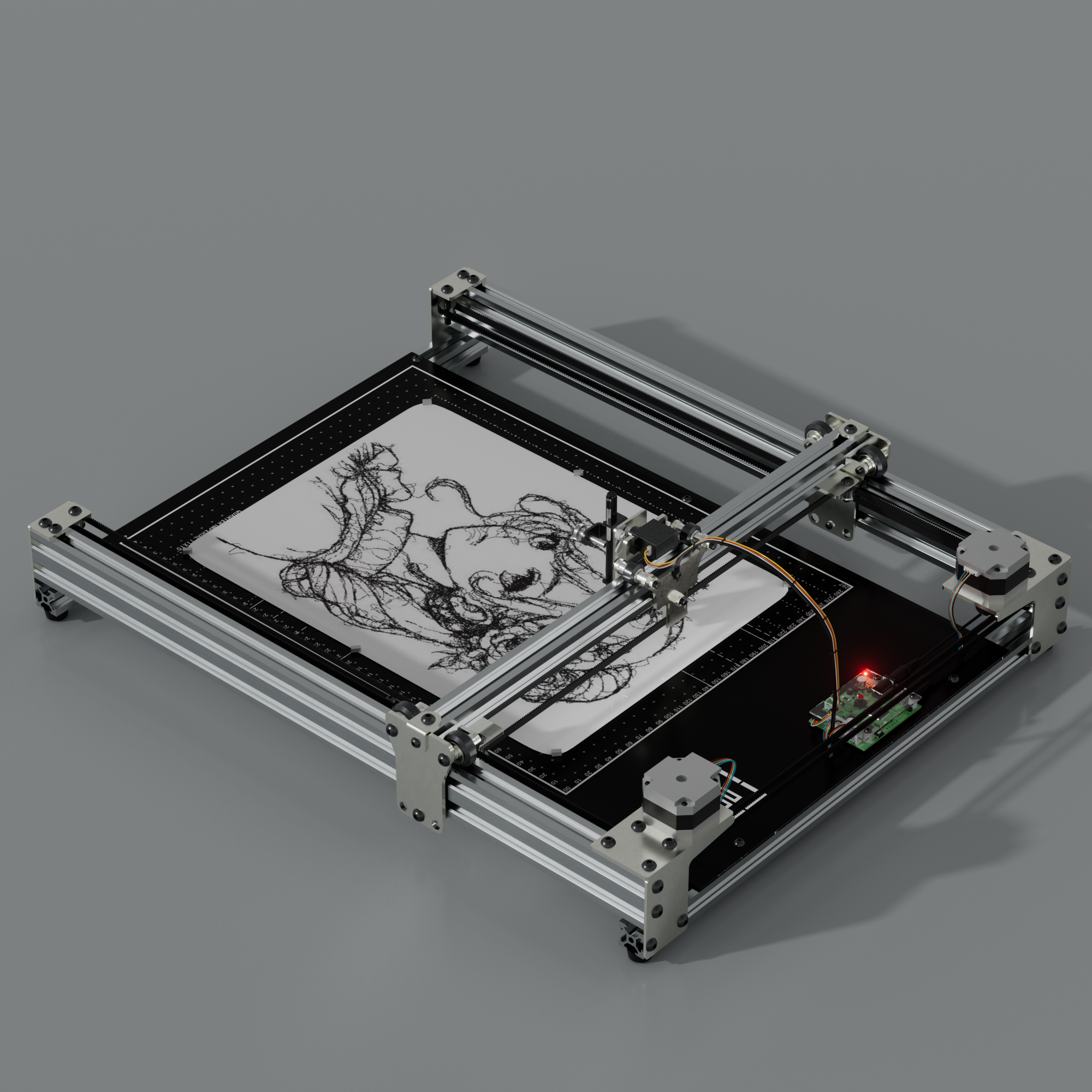

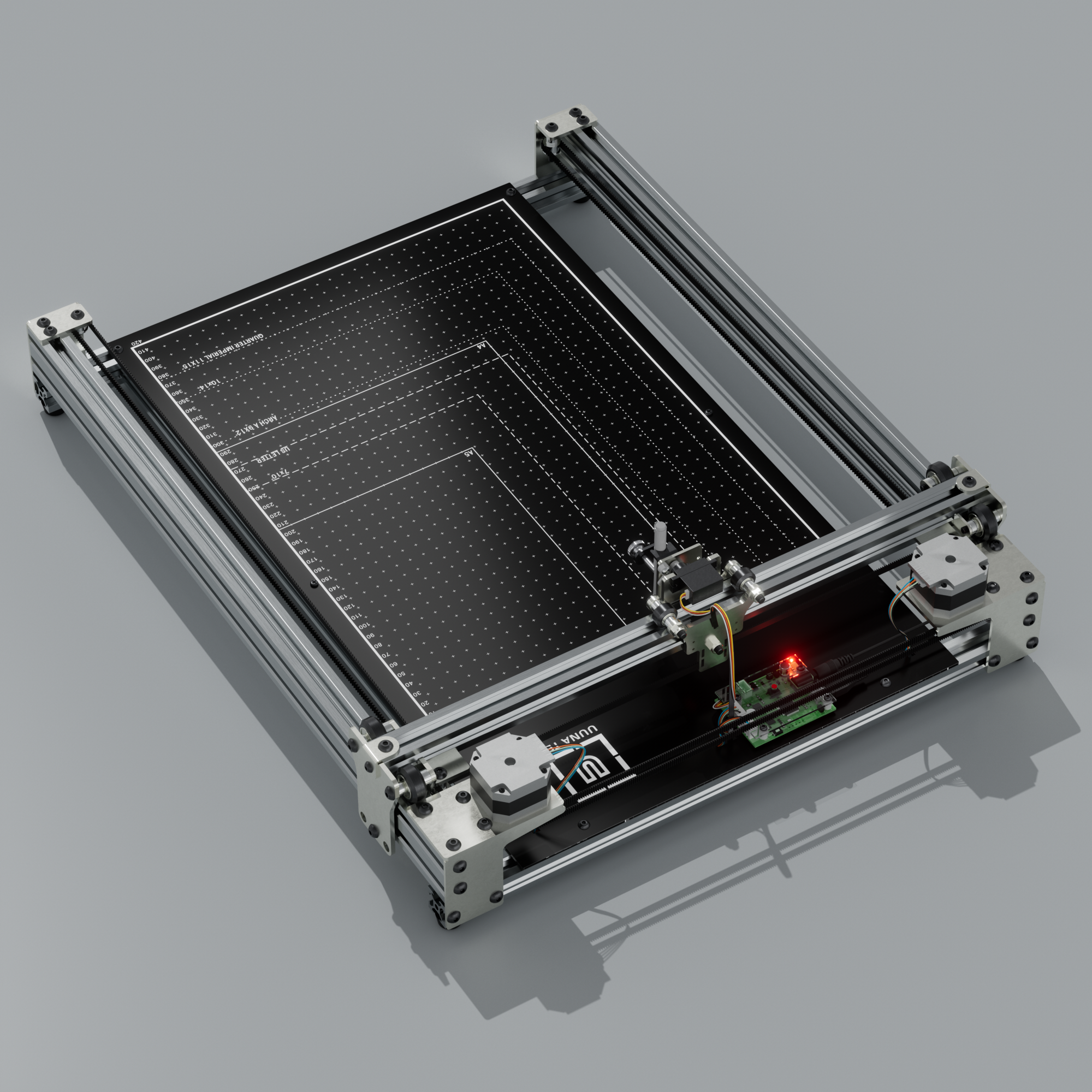

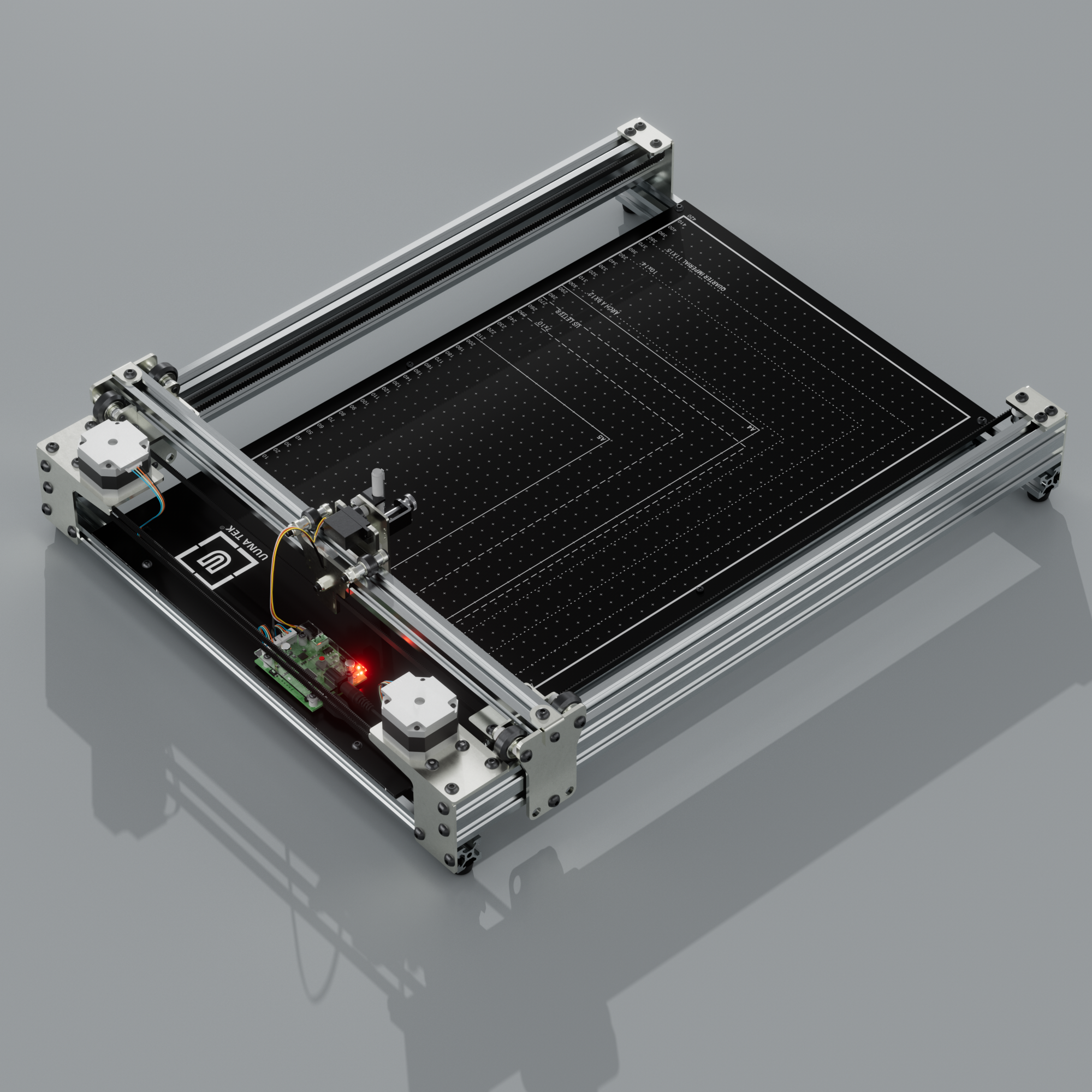

El iDraw H SE A3 es un plotter de pluma profesional preensamblado diseñado para arte generativo, codificación creativa, proyectos de escritura a mano y dibujo vectorial de precisión. Construido con un sistema de movimiento CoreXY de alta estabilidad, ofrece un rendimiento de trazado suave, una resolución ultra fina de 0,0125 mm y una operación de alta velocidad de hasta 12000 mm/min para flujos de trabajo creativos detallados y eficientes.

Totalmente ensamblado y listo para usar desde el primer momento, el H SE A3 se integra perfectamente con Inkscape, flujos de trabajo SVG, CLI y entornos API de Python. Artistas, diseñadores y desarrolladores pueden crear fácilmente obras de arte algorítmicas, automatizar tareas de trazado o construir sistemas generativos personalizados con soporte avanzado de scripting.

Con soporte para múltiples plumas, automatización de escritura a mano, fuentes Hershey y flujos de trabajo de combinación de correo electrónico, el iDraw H SE A3 es ideal para estudios, educadores, creadores y makers que buscan un plotter de pluma de escritorio confiable y flexible para proyectos artísticos y comerciales.

Impulsado por la precisión

Libertad Creativa

Listo para gran formato

Rendimiento Suave

1. Diseño preensamblado listo para usar

iDraw H SE llega completamente ensamblado y listo para usar desde la caja, eliminando configuraciones complejas. Los artistas pueden comenzar a crear de inmediato sin preocuparse por calibraciones. Esto lo hace ideal para estudios, escuelas y profesionales que necesitan un plotter de arte generativo plug-and-play que funcione al instante.

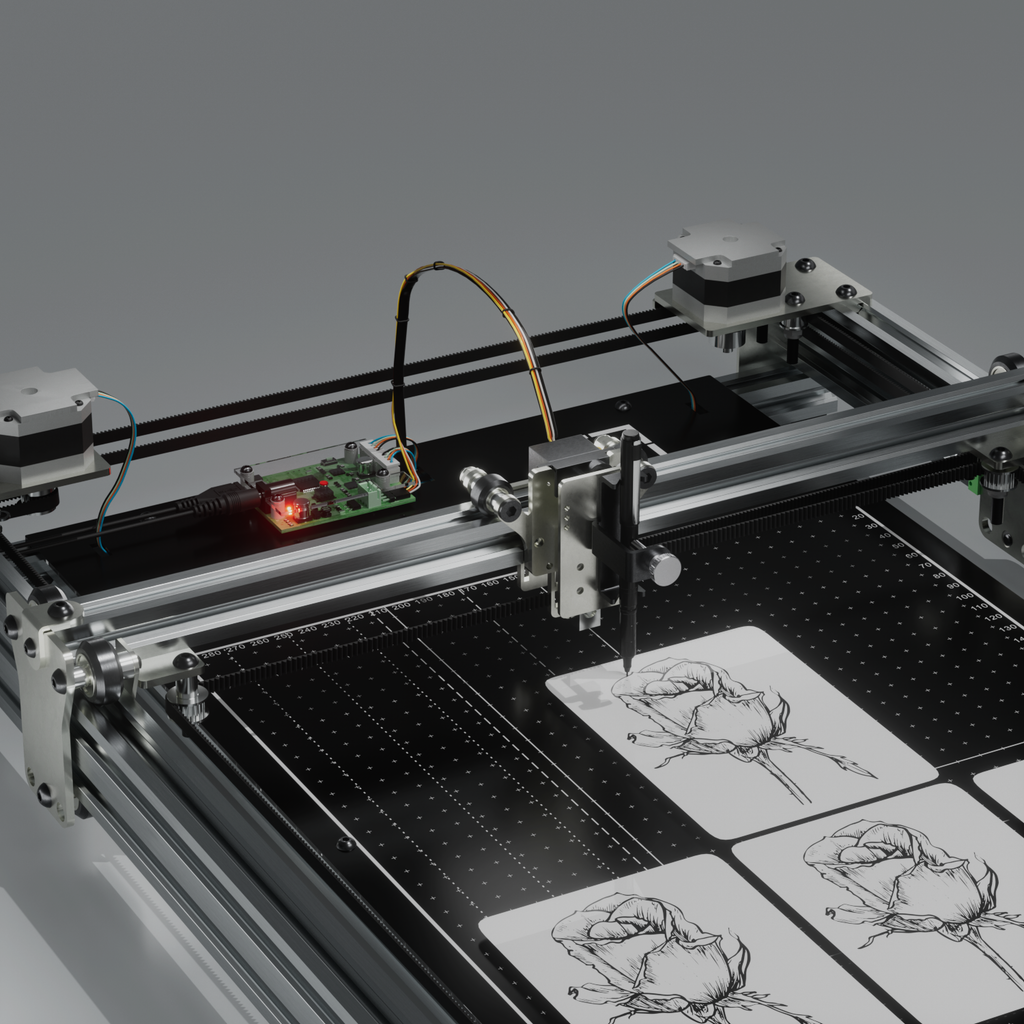

2. Sistema de movimiento CoreXY avanzado

Construido con una estructura CoreXY de alta estabilidad, el sistema garantiza un movimiento más suave, mayor precisión y reducción de vibraciones. Mejora significativamente la exactitud y consistencia del dibujo, especialmente en flujos de trabajo complejos de plotters de arte generativo que requieren trazado y grabado estables durante largos períodos.

3. Ultra alta precisión 0,0125 mm

Con una resolución mínima de movimiento de 0.0125 mm, el iDraw H SE ofrece un control de detalle extremadamente fino. Este nivel de precisión garantiza líneas nítidas, curvas suaves y resultados de calidad profesional, convirtiéndolo en uno de los sistemas de plotter de pluma preensamblados más precisos disponibles.

4. Automatización con CLI y API de Python

Admite una interfaz de línea de comandos (CLI) independiente y una API de Python para iDraw, lo que permite la automatización completa y la creación de scripts personalizados. Desarrolladores y artistas pueden integrar flujos de trabajo, generar obras de arte por lotes y construir sistemas generativos avanzados utilizando una arquitectura de control abierta.

5. Velocidad ultra rápida de 12000 mm/min

Con velocidades de hasta 12,000 mm/min, esta máquina es hasta 3 veces más rápida que los plotters de bolígrafo típicos. Reduce significativamente el tiempo de producción para escritura en masa, dibujos a gran escala y proyectos iterativos de arte generativo con plotters.

6. Fuente Inteligente y Automatización de Correo Electrónico

Admite combinación de correo electrónico y fuentes Hershey para una salida escalable con estilo manuscrito. Combinado con PremiumUltra Scriptalizer, introduce variaciones dinámicas de fuente, haciendo que cada salida sea única e ideal para personalización creativa o producción comercial en lote.

iDraw H SE A3 Specification

System & Control

Motherboard: DrawCore V1.3
Firmware: EBB
Add-ons: UUNA TEK H SE Control
Connectivity: USB
Input Voltage: AC 100–240V (Worldwide Compatible)
Power Adapter Output: DC 12V, ≥1A

Motion System

Motor Structure: CoreXY Motion Structure
Maximum XY Travel Speed: 15 in/sec (≈38 cm/sec)
Native XY Resolution: 2032 steps/inch (≈80 steps/mm)
Minimum Motion Resolution: 0.0125 mm
Mechanical Precision (XY): 0.1 mm
Reproducibility (XY): Typically better than 0.1 mm at low speeds
Vertical Pen Travel: 15 mm
Adjustable Pen Angle: 70–90°

Working Area

Working Area: 420 × 297 mm (A3)

Frame & Structure

Frame Materials: Aluminum Profile + Stainless Steel + Magnetic Steel Plate
Usable Pen Diameter: Up to 16 mm

Dimensions & Weight

Machine Net Weight: 6.1 kg

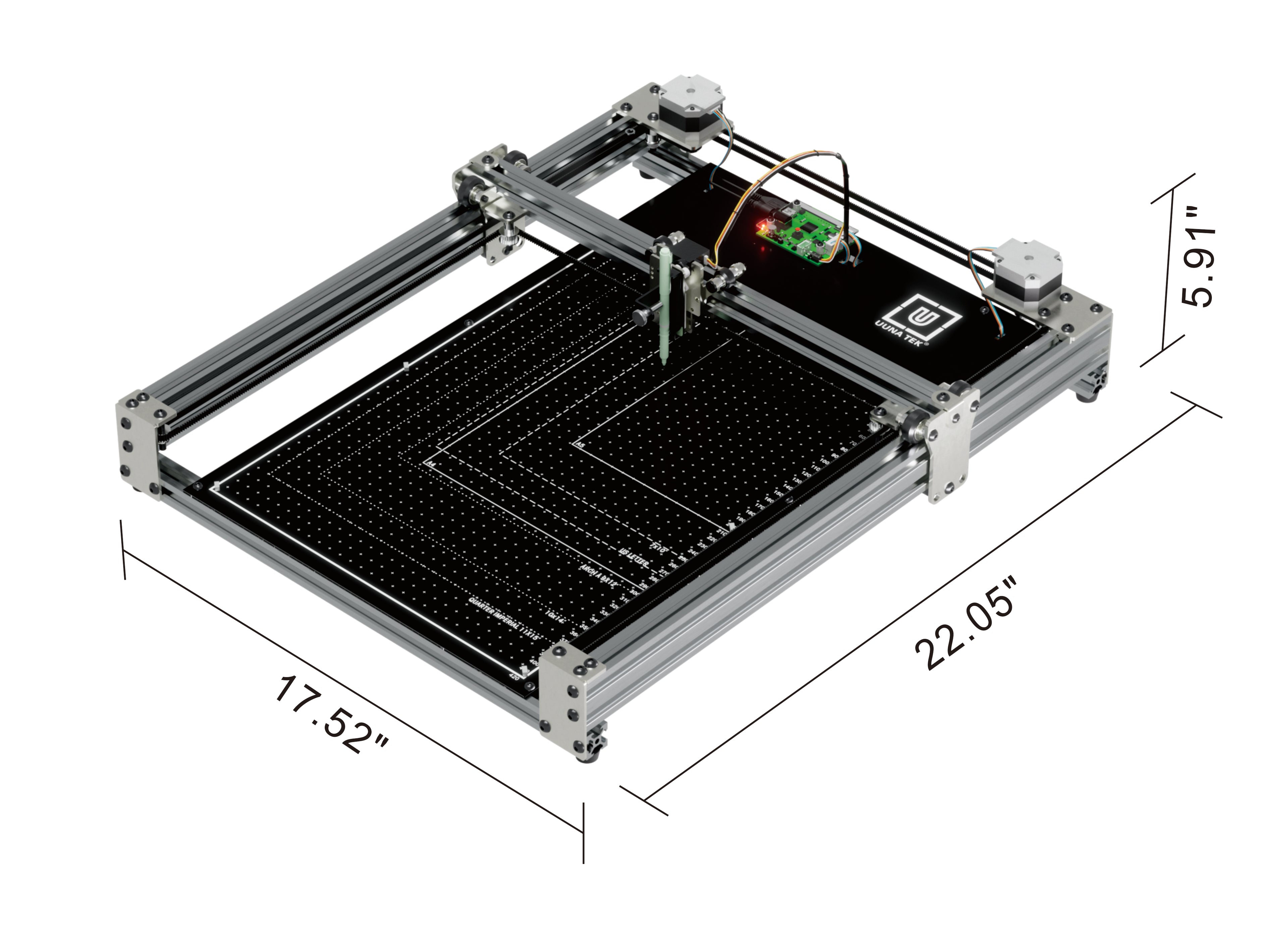

Machine Size: 560 × 460 × 115 mm
Package Weight: 7.5 kg
Package Size: 620 × 500 × 160 mm

Software & Compatibility

Windows 7/8/10/11 or above (iDraw Software, Inkscape)
Mac OS (iDraw Software, Inkscape, Lightburn for Laser Engraving)
Linux supported

Preguntas frecuentes

Es un plotter de arte generativo preensamblado con movimiento CoreXY, mayor precisión, mayor velocidad y funciones avanzadas de automatización como CLI y API de Python.

Sí, viene completamente ensamblado y listo para usar inmediatamente al sacarlo de la caja.

Sí, los principiantes pueden usarlo a través del software Inkscape o iDraw sin conocimientos de programación.

CoreXY mejora la estabilidad, reduce la vibración y aumenta la precisión de dibujo para trabajos complejos de plotters de arte generativo.

Sí, es compatible con Inkscape, flujos de trabajo SVG y sistemas generativos personalizados basados en Python.

Sí, admite la combinación de correo electrónico y las fuentes Hershey para tareas de escritura por lotes como cartas e invitaciones.

Ofrece una resolución de hasta 0,0125 mm, garantizando una salida extremadamente fina y precisa.

No, la codificación es opcional. Los usuarios pueden operarlo con software estándar o usar CLI/Python para un control avanzado.

Puede alcanzar hasta 12,000 mm/min, lo que lo convierte en uno de los trazadores de pluma más rápidos de su clase.

Es ideal para artistas, diseñadores, educadores y creadores que trabajan con plotters de arte generativo o automatización de dibujo de alta precisión.

Fantastic pen plotter

Having studied the pen plotter market for my first machine I decided on the iDraw A3 HSE. After ordering it took a few days for the machine to be readied for dispatch and I received an email saying it would be with me in the UK in around a week but somehow, to my amazement, it arrived the next day!
It was very well packaged and only needed a few cables plugging in to get going. The build quality is great and construction looks very good plus it��s nice and sturdy. I��ve only plotted on A4 paper so far but have found the bed to be perfectly flat.
It��s really accurate and fast if you want it to be. As with all pen plotters it��s mesmerising to watch.
Being new to pen plotting there��s a lot to learn but there��s a wealth of resources online waiting to be found. I couldn��t get a particular function to work (hidden line removal) but UUNATEK were great and helped me find a solution and now I can do it. There are only a couple of things I��d like to change on it - an on/off button would be nice and, as far as I can see, you can��t use the full A3 area if using an angled pen.
Overall, this is a fantastic pen plotter and I��m really impressed with it.

Works out of the box!

I have used a cutting plotter before, and have 3D printed some parts so I could also have it do pen plotting. It's less than ideal but gave me a taste of what was possible. I also found the required cutting plotter software frustrating and limited, for example, it could not directly use an SVG file without a tedious multi-step conversion process.

From the start, the iDraw H SE has proven itself to be much better suited for my needs. I do most of my work in Inkscape already, so being able to plot directly without having to switch programs and export/import files is a huge improvement.

The device is also clearly designed to be modified, and I already have some ideas for it: I want to be able to have it hold a calligraphy pen in the same way as a human hand. I can already angle the pen, but I also need that angle to be rotated. For now, I work around this by rotating the drawing in Inkscape and the paper. But in future, I could design something, have it 3D-printed and then simply screw it in place. All that matters is that the screw holes align neatly, it's so simple!

Shipping was pretty fast: package was dispatched from Hong Kong 2 days after I placed the order, and then took 14 days to arrive in the Netherlands. The device came fully assembled and ready to use.

Software was a matter of making sure Inkscape is up-to-date and then dropping some plug-in files into the right folder, as explained in the documentation.

There's perhaps more of a learning curve than with hobbyist devices like the cutting plotter I used before, but that is to be expected when using something for power users and professionals.

The other criticism I have is the price. It's very expensive compared to a cutting plotter. I was able to find plenty of reviews and video walkthroughs of the device, giving me a very good idea what I would get. A minute of searching got me a very good discount code for the device, so I figured I'd give it a shot. Now that I've used it, I'm definitely keeping it.

Attached is a timelapse video of one of the first things I did with the plotter, which was making holiday cards to send out!

Great plotter

This is my first plotter and I cannot say enough good things about it. It arrived perfectly and setup was a breeze, it just took 15 minutes and everything has been working great ever since. I'm really happy with it. The support is also excellent!

Professional and precise

This is the second pen plotter I have owned, and I am thoroughly impressed with the upgrade in quality. The iDraw H SE (A3) feels incredibly solid and the operation is smooth and stable. As the title says, the precision is excellent; it handles complex vector files and fine lines without any issues.

Setting it up was straightforward, and it fits perfectly into my existing Inkscape workflow. If you are looking for a reliable machine that produces consistent, high-quality results, I highly recommend this one. I absolutely love it.

Lightweight and Reliable

I have been using the iDraw H SE A3 for some time now, and I can say it is a very successful tool for creativity and experimentation. The device turned out to be quite easy to set up. After installing the software, everything works stably. I mainly prepare vector files in Inkscape and then send them to the plotter. The workflow is clear and logical, even for beginners.

The construction feels solid: a metal frame, smooth motion and good line accuracy. The plotter confidently works with different pens and markers, which is convenient for calligraphy, illustration and generative art. I have used it to draw patterns, lettering and educational projects. I especially enjoy watching digital ideas turn into neat drawings on paper. A great choice for artists, designers and techno-art enthusiasts.

P.S. In the photos are my experiments with scratching on rainbow scratch paper.
